Nestor demo videos: free nesting software at work

Four short videos, silent with captions, each showing one of Nestor's free tools from start to finish: cut shape nesting of DXF parts for laser, plasma, waterjet and router; shear nesting of a cut list for sheet; linear nesting of lengths from bar, tube and pipe; and the DXF generator for standard shapes. Each is under two minutes, recorded from Nestor itself.

• 1:45

  DXF nesting demo: true shape nesting in Nestor

  Watch a free DXF nesting demo: eight DXF parts nested by their true shapes for a waterjet, small parts inside the holes of bigger ones, then the cut time and the DXF.

• 1:27

  Shear nesting demo: a cut list laid out for the shear

  Watch a free shear nesting demo: a cut list of rectangles typed and pasted, laid out on 48 x 96 sheets with every cut numbered, the operator view and the PDF cut plan.

• 1:20

  Linear nesting demo: a cut list from the fewest bars

  Watch a free linear nesting demo: a cut list of lengths pasted from a spreadsheet, cut from a 10 ft remnant and 21 ft bars with kerf and end trim, and the PDF cut list.

• 1:32

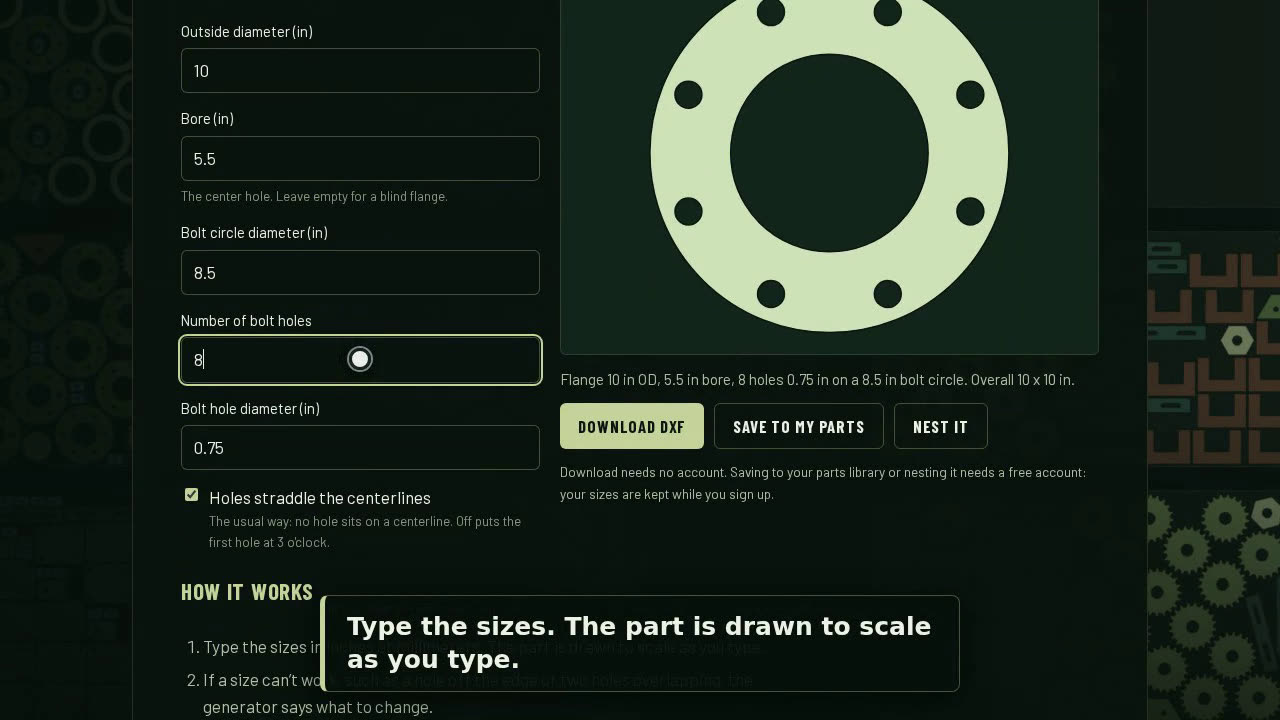

  DXF generator demo: a flange DXF from a few sizes

  Watch the free DXF generator draw a flange from its sizes, catch a bolt circle that cannot work, download the DXF in millimeters, then nest twelve on a sheet.
